ACAI Group commissioned LSJ Engineering to work on a commercial property in Harrow, Greater London. The property included a badly corroded external staircase, so our team designed and fitted replacement.
- Client: ACAI Group
- Modelled by: Sam Thewsey of DSD Ltd
- Job date: 2020

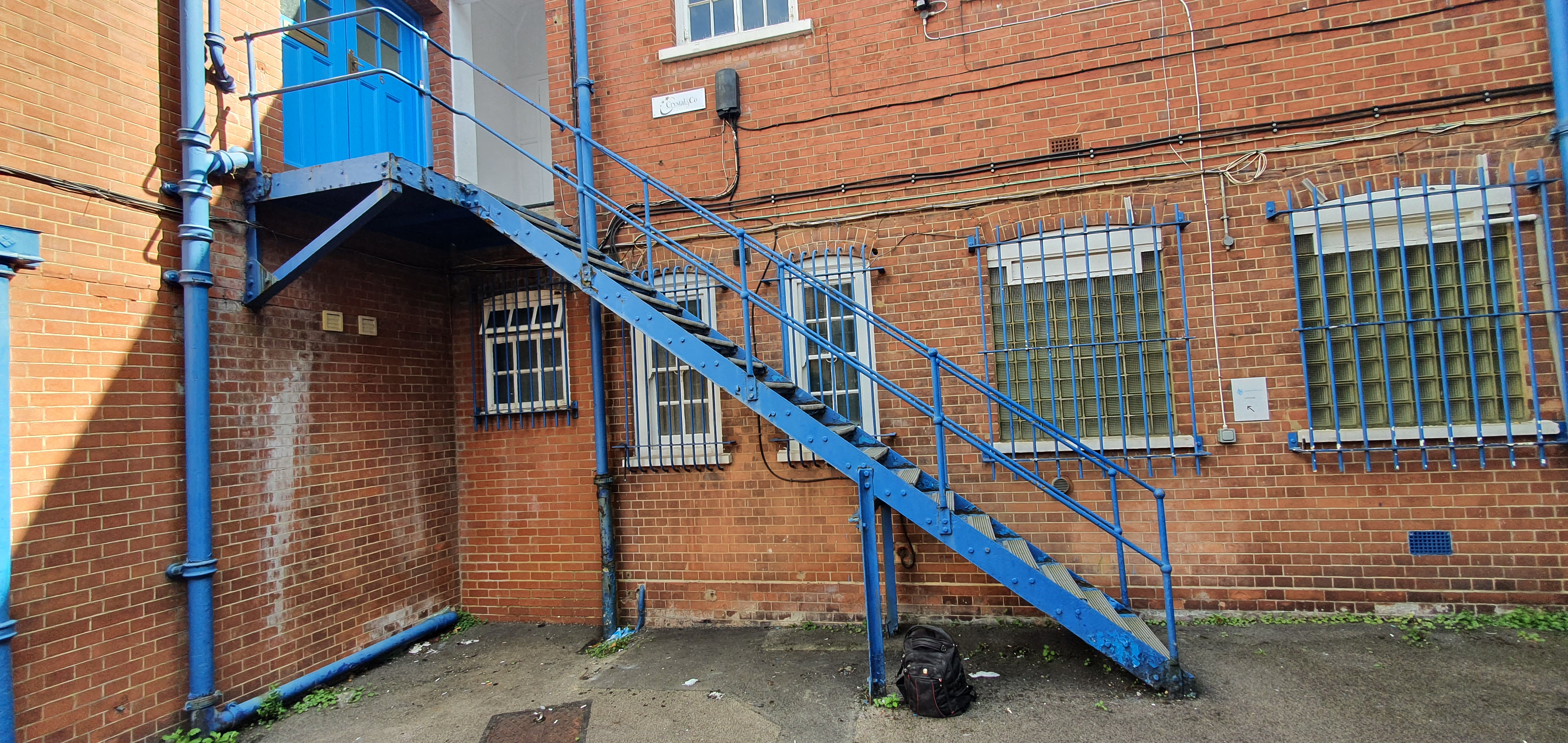

The existing stair (probably in excess of 20 years old!) did not conform to current regulations. Unfortunately, the replacement stair did not meet regulations either, due to space restrictions. Permission was, therefore, granted by Building Control to replace ‘like for like’ in terms of tread goings and risers.

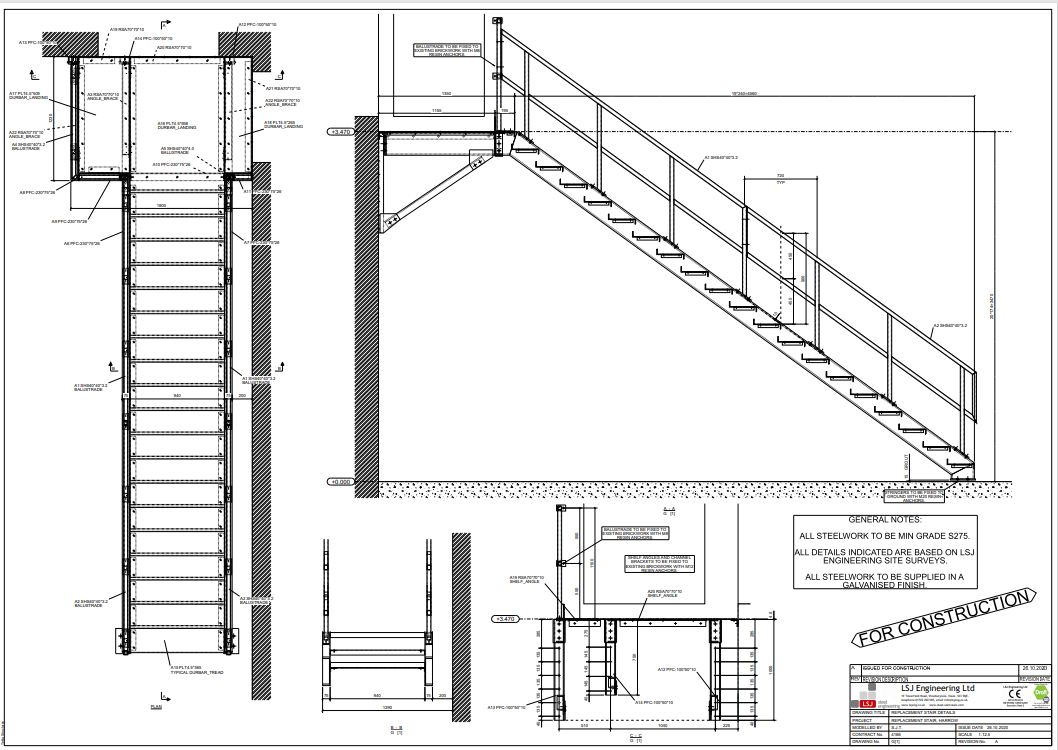

At the time of this project, our in-house drafting facilities were very busy on other projects, so the design work and drawings were carried out by Sam Thewsey of DSD Ltd.
This was an office access stair, so we carried out the removal and replacement over 4 long days, partly over a weekend in order to minimise disruption to the businesses.

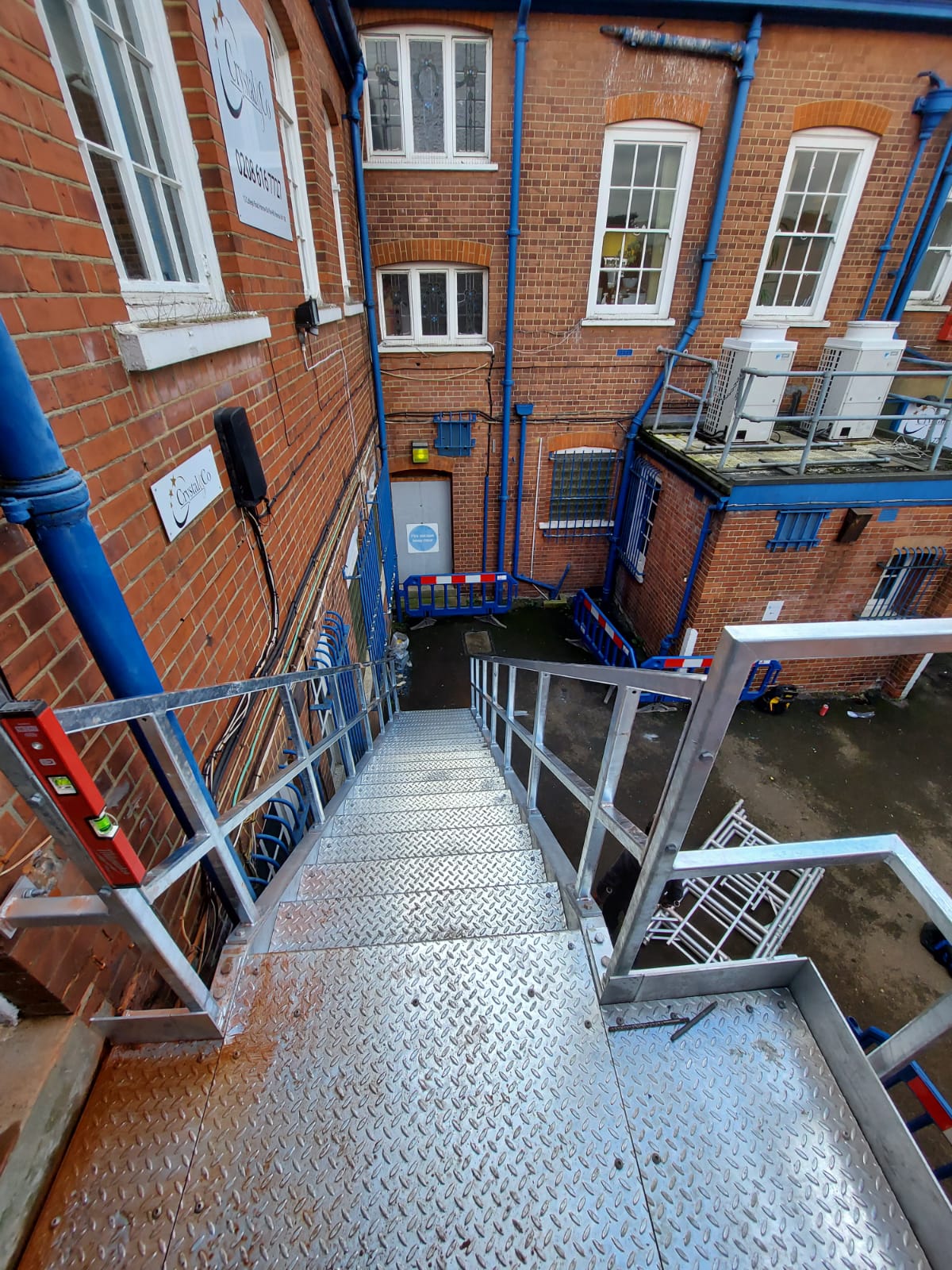

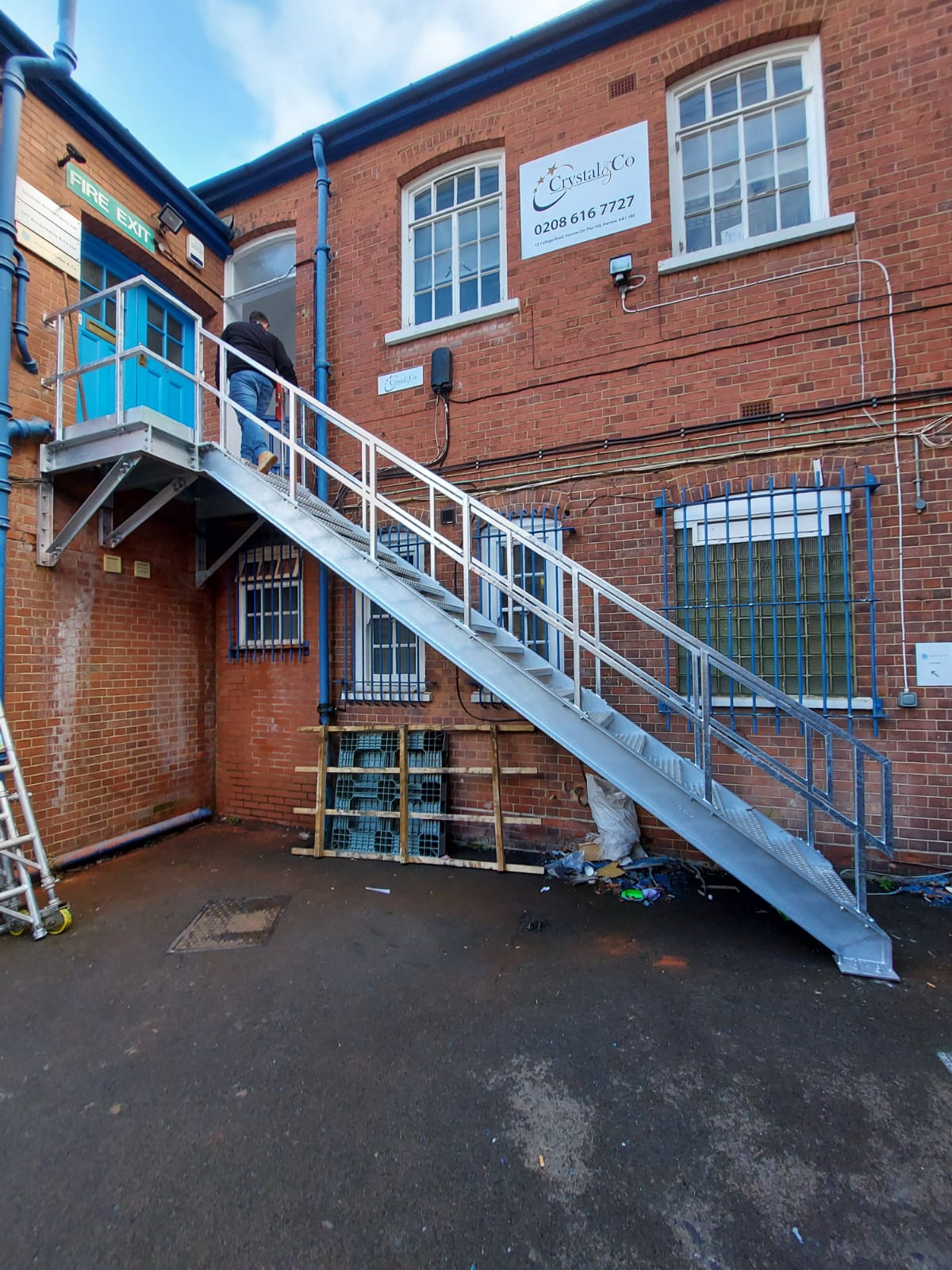

The new stair stringers, treads and balustrade were hot dip galvanized for durability. What do you think of the finished staircase?
Note: you can click on the images to enlarge them.
